Coating Thickness Gauges /
Paint Thickness Gauges

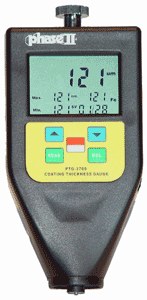

PTG-3700 Series


ptg-3700


The NEW! Phase II PTG-3700 coating thickness gauge/paint thickness gauge is the latest, state-of-the-art thickness gauge in which you can easily detect the thickness of non-magnetic coatings on magnetic(ferrous) substrates or an insulating coating on a non-magnetic conductive substrate(non-ferrous). The PTG-3700 coating thickness gauge utilizes an integrated auto-detect probe, while the PTG-3750 coating thickness gauges uses an external probe.
The auto detect probes on these coating thickness gauges/paint thickness gauges use both eddy current and magnetic induction technologies.
The PTG-3700 series coating thickness gauges/paint thickness gauges are full featured w giant screen, backlighting, wider measuring range, advanced memory, browsing and statistics, such as min/max values, averaging and counters.
The PTG-3700 coating thickness gauges/paint thickness gauges can be used in many areas of industry including mfg, general engineering, commercial inspection and automotive apps.

Main Technical Data for PTG-3700 series coating thickness gauges/paint thickness gauges:
Measuring Range: 0-1250um or 0-50mils
Resolution: 0.1um to 100um, 1um over 100um
Accuracy: +/-1-3%N or 2.0um, whichever is greater
Min measuring area: .2” x .2” (5mm x 5mm)
Min substrate thickness: ferrous 20 mils(.5mm), Non-ferrous 2mils(50um)
Min radius of curvature: Convex .12” (3mm), Concave 1.2” (30mm)
Max surface temp: 302 deg F (2 second contact)
Power: 2 AAA
Dimensions: 126 x 65 x 35mm (5 x 2.6” x 1.5”)

The PTG-3700 coating thickness gauges utilize an integrated probe that can automatically detect a Ferrous or Non-Ferrous substrate and comes with 2 substrate samples (steel,aluminum), 4 calibrated thickness samples, carry case, batteries and operation manual.
