Typical applications for measuring
coating thickness utilizing Eddy-Current
and/or Magnetic Induction

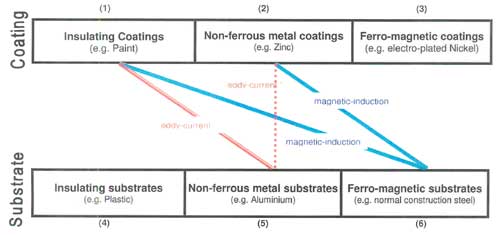

coating thickness gauge chart
Typical Coating Materials:

1) Insulating Coatings
a) Paint
b) Plastic
c) Enamel
d) Anodizing(on Alum)
e) Ceramic

2) Non-Ferrous Coatingsa) Brass
b) Bronze
c) Chrome
d) Copper
e) Lead
f) Electroless Nickel
g) Tin
h) Zinc

3) Ferro-Magnetic Coatings
a) Electro Plated Nickel

Typical Substrate Materials:
4) Insulating Substrates
a) Plastic
b) Ceramic
c) Epoxy
d) Glass

5) Non-Ferrous Substrates
a) Aluminum
b) Brass
c) Bronze
d) Copper
e) Lead
f) Tin
g) Zinc

6) Ferro-Magnetic Substrates
a) Steel
b) Stainless Steel (Ferrous)
  Non-Measurable w/eddy-current/magnetic induction
a) Nickel on Steel or non-ferrous substrates or on insulating substrates
b) Insulating coatings on insulating substrates
c) Non-ferrous metal coatings on insulating substrates
d) Non-ferrous metal coatings on non-ferrous metal substrates
